Brand Name : GOMECY
Model Number : GMS 1550
Certification : CE ISO
Place of Origin : CHINA
MOQ : 1 Unit
Payment Terms : T/T, Western Union, MoneyGram
Supply Ability : 200 units per month
Delivery Time : 5-7 days
Packaging Details : Aluminum case
Wavelength : 1550nm
Function : Acne Scar Removal, Wrinkle Removal, Skin Rejuvenation
Function1 : Whitening
Keyword : Er Laser Machine
Power : 1200W
Max output power : 15 walt are optional
Spot pattern : Circle / Triangle/ Square/ Rectangle / Rhombus
Pulse energy : 2mj~150mj (every stepping: 2mj)
1540 Er Yag Laser Fractional Erbium Glass Laser 1540nm Erbium Laser Machine

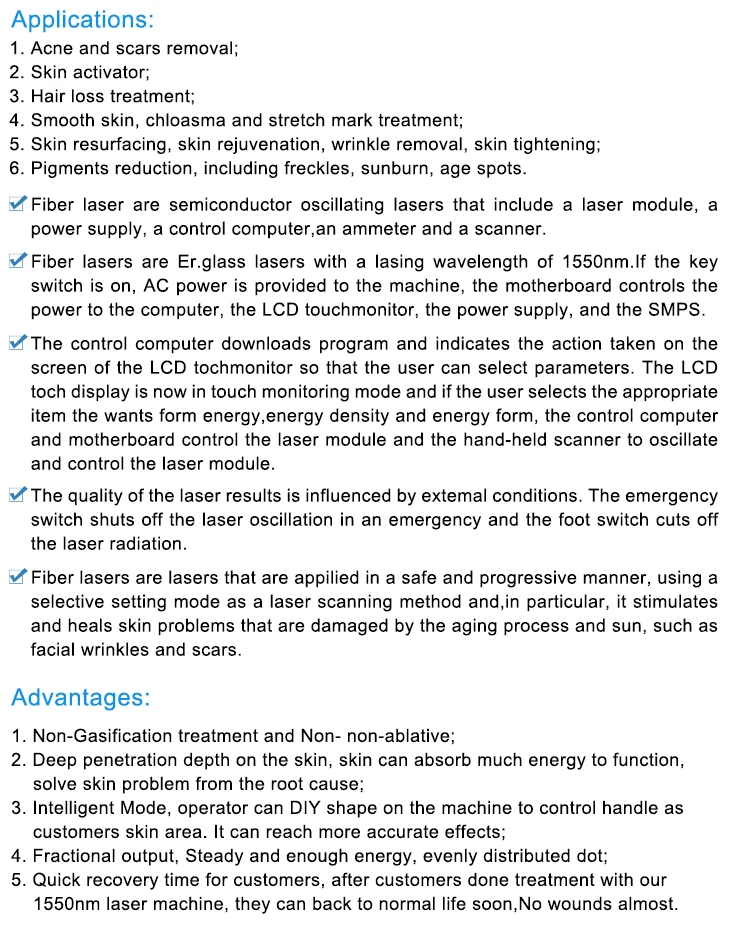

Application of 1550nm fiber laser:
Principle of 1550nm erbium fiber fractional laser
1550nm Erbium fiber laser is splitted into numbers of microscopic beams to the skin, known as microscopic thermal zone. The fractionaized beams not only trigger the healing process of the skin, but also keep the tissues around the coagulation zone. The treatment removes old epidermal pigmented cells and penetreates deep into the dermis, remolding collagen and get the skin regeneration. Dermis fiber thickens, micro wound heals quickly, skin restroes smooth after several treatments. The heat of laser only passes deeply through the fractional damaged area. This allows the skin to heal much faster than if the while area was treated. These driver the better clinical results and make less downtime and side effect.
Supply | AC 220V/110V 50Hz |
Beam Delivery | Fiber |
Wavelength | 1550nm |
Optical Beam Quality | TEMoo |
Maximum Output Power | 15walt are optional |
Spot Size | 0.15mm |
Spot Pattern | Circle / Triangle/ Square/ Rectangle / Rhombus |
Scan Area Spot Volume (Square) | Spots5x5- 18×18 |
Spot Density | X0.5×1 / ×2 / ×3 / ×4 / ×5 / ×6 |
Aiming Beam | 650 nm |
Power of the Aiming Beam | ≤5mW |
Scanning Mode | Randomized Scanning |
Pulse Energy | 2mj~150mj (every stepping: 2mj) |
Cooling | Air Cooling |
Dimensions (before packaged) | 420mm×340mm×820mm |
Dimensions (After Packaged) | 500mm×400mm×950mm |
